Kia Sportage - Second generation (JEKM) (2005-2015) - Body Workshop Manual / Body structure / Zine-galvanized steel sheet used area / Roof panel (Without sunroof)

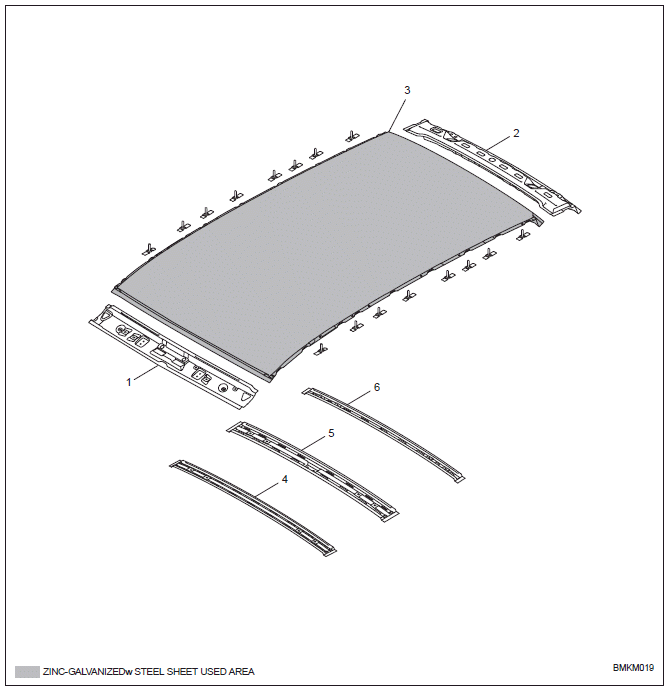

  1. Roof front rail assembly
  2. Roof rear rail assembly
  3. Roof panel
  4. Roof center No.1 rail
  5. Roof center No.2 rail
  6. Roof center No.3 rail

Roof panel (With sunroof)

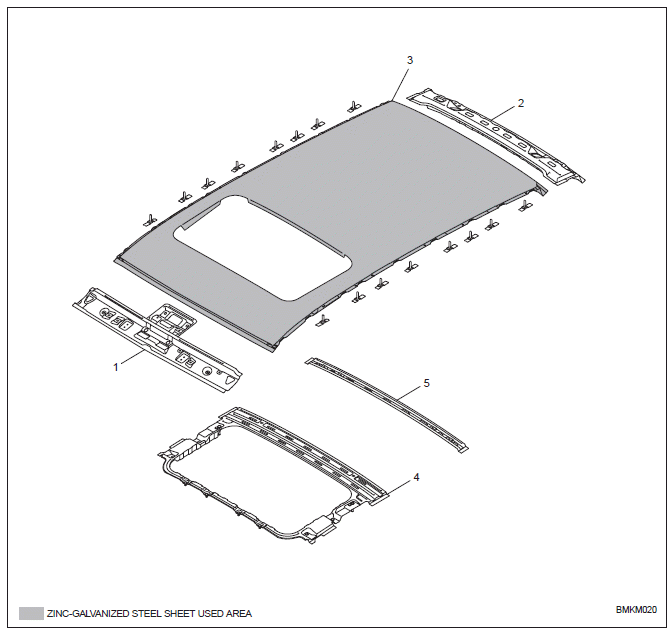

  1. Roof front rail assembly
  2. Roof rear rail assembly
  3. Roof panel
  4. Sunroof reinforcement
  5. Roof center No.3 rail
