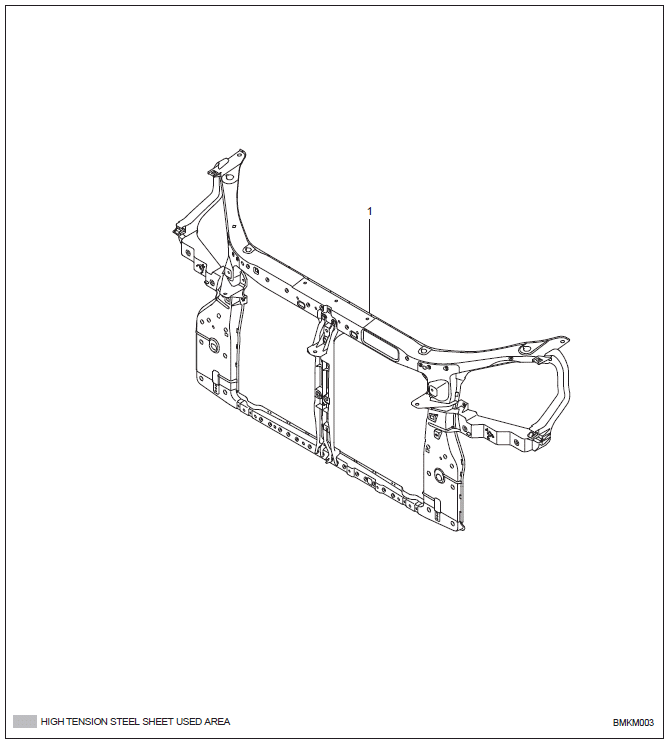

  1. Radiator support panel complete

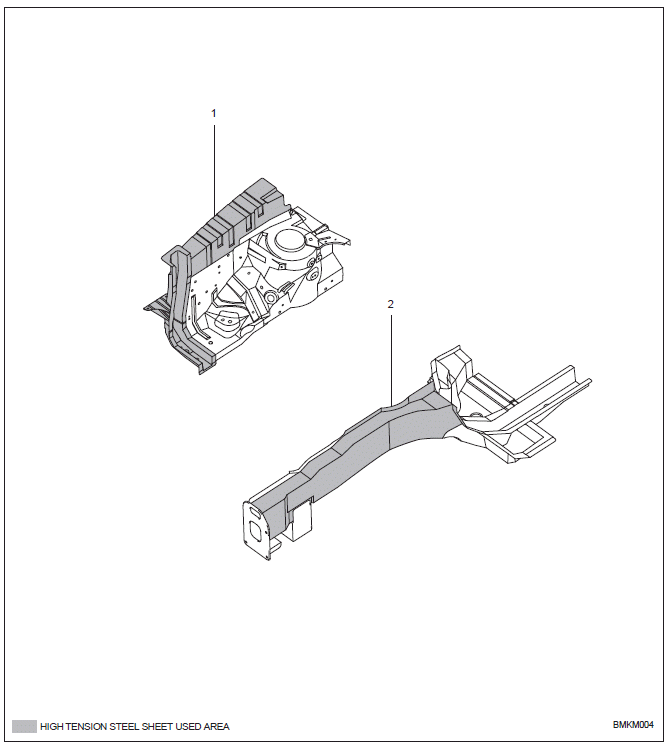

Fender apron panel

  1. Fender apron panel assembly
  2. Front side outer member assembly

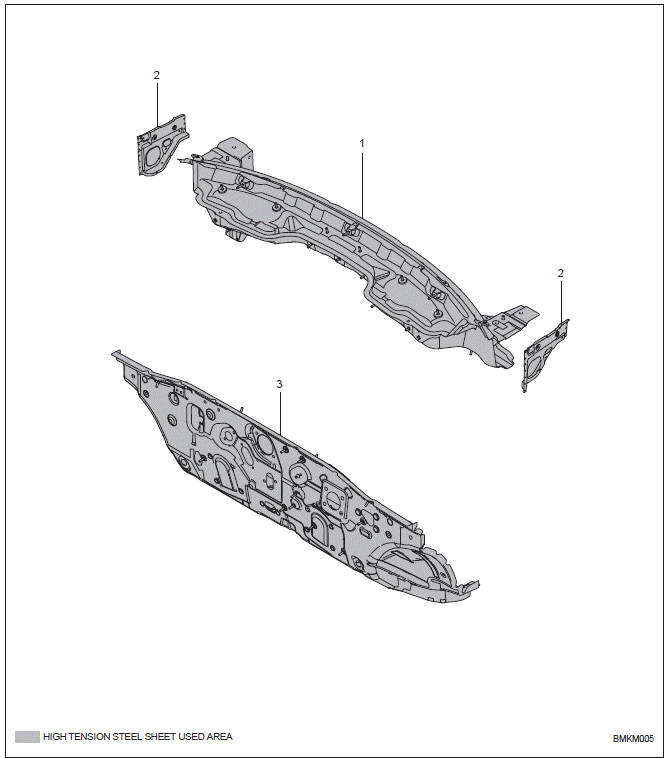

Cowl & Dash panel

  1. Cowl panel complete
  2. Cowl side outer panel
  3. Dash panel complete

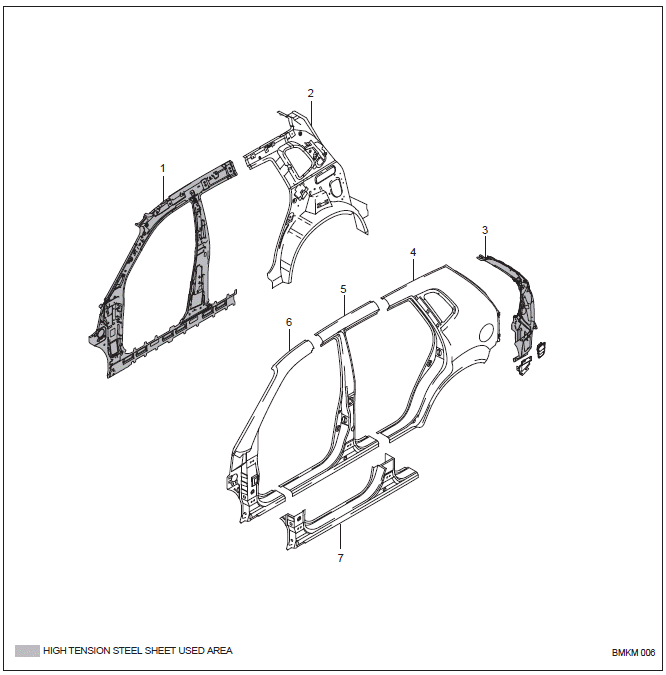

Side body panel

  1. Front inner pillar assembly
  2. Quarter inner panel assembly
  3. Side outer rear extension assembly
  4. Quarter outer panel assembly
  5. Center outer pillar assembly
  6. Pillar outer panel assembly
  7. Side assembly outer panel
