Kia Sportage: Intelligent Speed Limit Assist malfunction and limitations
Intelligent Speed Limit Assist malfunction

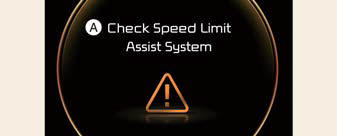

![Intelligent Speed Limit Assist malfunction](images/books/1538/12/index.66.jpg)
A: Check Speed Limit Assist system
When Intelligent Speed Limit Assist is not
working properly, the warning message
will appear on the cluster for several seconds,
and the master (
) warning light
will appear on the cluster. If this occurs,
have Safe Exit Assist inspected by an
authorized Kia dealer.
Intelligent Speed Limit Assist disabled

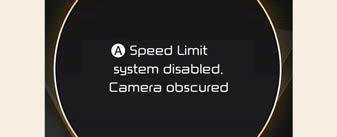

![Intelligent Speed Limit Assist disabled](images/books/1538/12/index.68.jpg)
A: Speed Limit system disabled. Camera obscured
When the front windshield where the
front view camera is located is covered with foreign
material, such as snow or
rain, it can reduce the detecting performance
and temporarily limit or disable
Intelligent Speed Limit Assist.
If this occurs, the warning message will
appear on the cluster. The function will
operate normally when snow, rain or foreign
material is removed.
If Intelligent Speed Limit Assist does not
operate normally after it is removed,
have Safe Exit Assist inspected by an
authorized Kia dealer.
NOTICE
Even though the warning message or
warning light does not appear on the
cluster, Intelligent Speed Limit Assist
may not operate properly.
Limitations of Intelligent Speed Limit Assist
Intelligent Speed Limit Assist may not
operate normally, or the function may
operate unexpectedly under the following
circumstances:
- The road sign is contaminated or
indistinguishable
- The road sign is difficult to see due
to bad weather, such as rain, snow,
fog, etc.
- The road sign is not clear or damaged
- The road sign is partially obscured
by surrounding objects or shadow
- A road sign near the road you are
driving is detected
- The road signs do not conform to the
standard
- The text or picture on the road sign
is different from the standard
- The road sign is installed between
the main line and the exit road or
between diverging roads
- A conditional road sign is not
installed with a sign located on the
road to enter or exit
- A sign is attached to another vehicle
- The distance between the vehicle and
the road signs is too far
- The vehicle encounters illuminating
road signs
- Intelligent Speed Limit Assist incorrectly
recognizes numbers in the
street signals or other signs as the
speed limit
- The minimum speed limit sign on the
road is recognized incorrectly
- A lot of signs are installed together
- The brightness changes suddenly, for
example when entering or exiting a
tunnel or passing under a bridge
- Headlamps are not used or the brightness
of the headlamps are weak at
night or in the tunnel
- Road signs are difficult to recognize
due to the reflection of sunlight, street
lights, or oncoming vehicles
- The navigation information or GPS
information contain errors.
- The driver does not follow the guide
of the navigation.
- The driver is driving a new road that is
not in the navigation system yet.
- The field of view of the Front view
camera is obstructed by sun glare
- Driving on a road that is sharply
curved or continuously curved
- Driving through speed bumps, or driving
up and down or left to right on
steep inclines
- The vehicle is shaking heavily
- There is an error in the navigation
map information or GPS information
WARNING
- Intelligent Speed Limit Assist is a supplemental
function that helps the
driver to comply with the speed limit
on the road, and may not display the
correct speed limit or control the driving
speed properly.
- It is the responsibility of the driver to
keep the speed limit.
- Intelligent Speed Limit Assist may not
operate for 15 seconds after the vehicle
is started, or the front view camera
is initialized.
NOTICE
For more details on the limitations of the
front view camera, refer to "Forward Collision-
Avoidance Assist (FCA) (Front
Camera Only) (if equipped)"
