Kia Sportage: Driver Attention Warning settings

Kia Sportage - Fifth generation (NQ5) - (2022-2025) - Owner's Manual / Driving your vehicle / Driver Attention Warning (DAW) / Driver Attention Warning settings

Basic function

Driver Attention Warning will help determine the driver's attention level by analyzing driving pattern, driving time, etc.

while vehicle is being driven. Driver Attention Warning will recommend a break when the driver's attention level falls below a certain level.

Leading vehicle departure alert function

Leading Vehicle Departure Alert function will inform the driver when the front vehicle departs from a stop.

Detecting sensor

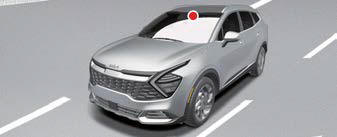

Front view camera
Front view camera

The front view camera is used to detect driving patterns and front vehicle departure while vehicle is being driven.

Refer to the picture above for the detailed location of the detecting sensor.

CAUTION

Always keep the front view camera in good condition to maintain optimal performance of Driver Attention Warning.

For more details on the precautions of the front view camera, refer to "Forward Collision-Avoidance Assist (FCA) (Front Camera Only) (if equipped)"

Driver Attention Warning settings

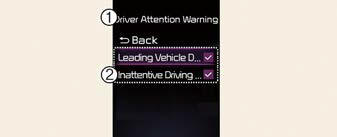

Driver Attention Warning

Driver Attention Warning

Driver Attention Warning

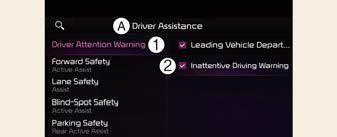

A: Driver Assistance

  1. Driver Attention Warning
  2. Inattentive Driving Warning

With the vehicle on, select or deselect Settings? Driver Assistance ? Driver Attention Warning from the User Settings menu or select or deselect Settings? Vehicle ? Driver Assistance ? Driver Attention Warning from the infotainment system to set whether or not to use each function.

  • Inattentive Driving Warning: Driver Attention Warning will inform the driver the driver's attention level and will recommend taking a break when the level falls below a certain level.
