Kia Sportage: Using the infotainment/climate switchable controlle
NOTICE
If you install an aftermarket HID head
lamp, your vehicle's audio and electronic
device may malfunction.
Using the infotainment/climate switchable
controller

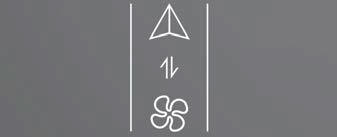

Press the button on the switchable controller
to switch between infotainment
system or climate control panel.
Press and hold the button to select the
default mode for the control panel.
Switching between panels

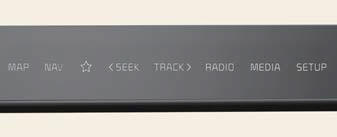

Infotainment control panel

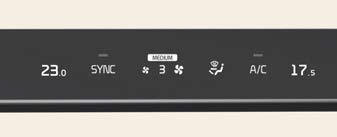

Climate control panel
Press the button on the switchable controller
to select the desired control panel.
The selected control panel icon will be
illuminated and the control panel will be
changed.
- The knob display will be illuminated
according to the selected control
panel mode.
- When the vehicle is in the ACC position,
only the infotainment system will
be activated.

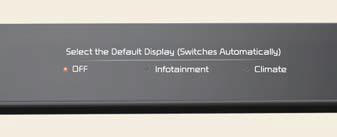

Setting the default mode

Press and hold the button to select the
default mode for the control panel.
- After the setting, the control panel will
return to the default mode after a certain
period of time even if the control
panel is switched to the different
mode.
- If the mode is set to 'OFF', the control
panel will display the mode used
recently.
