Kia Sportage: Navigation-based Smart Cruise Control operation
Operating conditions
Navigation-based Smart Cruise Control
is ready to operate if all of the following
conditions are satisfied:
- Smart Cruise Control is operating
- Driving on main roads of highways (or
motorways)
WARNING
Navigation-based Smart Cruise Control
(NSCC) is a supplemental system and is
not a substitute for safe driving. It is the
responsibility of the driver to always
check the speed and distance to the
vehicle ahead. Always drive safely and
use caution.
NOTICE
For more details on how to operate
Smart Cruise Control, refer to "Smart
Cruise Control (SCC) (if equipped)"
Navigation-based Smart Cruise
Control display and control
When Navigation-based Smart Cruise
Control operates, it will be displayed on
the cluster as follows:

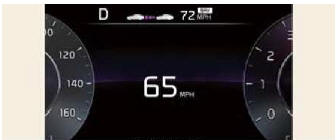

Navigation-based Smart Cruise Control standby
![Navigation-based Smart Cruise Control standby](images/books/1538/9/index.40.jpg)
If the operating conditions are satisfied,
the white (
) symbol will appear.

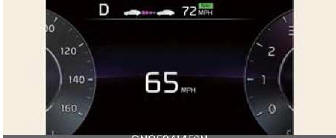

Navigation-based Smart Cruise Control operating
![Navigation-based Smart Cruise Control operating](images/books/1538/9/index.42.jpg)
If temporary deceleration is required in
the standby state and Navigation-based
Smart Cruise Control is operating, the
green (
) symbol will appear on the
cluster.
If the Highway Set Speed Auto Change
function operates, the green (
)
symbol and set speed will appear on the
cluster, and an audible warning will
sound.

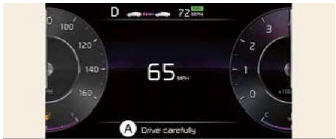

WARNING
The warning message will appear in the
following circumstances: ![](images/books/1538/9/index.45.jpg)
A: Drive carefully
- Navigation-based Smart Cruise Control
is not able to slow down your
vehicle to a safe speed.
NOTICE
Highway Curve Zone Auto Slowdown
and Set Speed Auto Change function
uses the same (
) symbol.
The images or colors may be displayed
differently depending on the
specifications of the instrument cluster
or theme.
Highway Curve Zone Auto Slowdown
Depending on the curve ahead on the
highway (or motorway), the vehicle will
decelerate, and after passing the curve,
the vehicle will accelerate to Smart
Cruise Control set speed.
NOTICE
Vehicle deceleration time may differ
depending on the vehicle speed and the
degree of the curve on the road. The
higher the driving speed, deceleration
will start faster.
Highway Set Speed Auto Change
Highway Set Speed Auto Change function
will operate when Smart Cruise Control
set speed and the highway (or
motorway) speed limit is matched.
While Highway Set Speed Auto Change
function is operating, when the highway
(or motorway), speed limit changes,
Smart Cruise Control set speed automatically
changes to the changed speed
limit.
- If Highway Set Speed Auto Change
function has changed to the standby
state by driving on a road other than
the highway (or motorway) main road,
Highway Set Speed Auto Change
function will operate again when you
drive on the main road again without
setting the set speed.
- If Highway Set Speed Auto Change
function has changed to the standby
state by depressing the brake pedal,
press the (
) switch to restart
the
function.
NOTICE
- If Smart Cruise Control set speed is
adjusted different f r om the speed
limit, Highway Set Speed Auto
Change function will be in the standby
state.
- Highway Set Speed Auto Change
function only operates based on the
speed limits of the highway (or motorway),
it does not work with the speed
cameras.
- When Highway Set Speed Auto
Change function is operating, the
vehicle automatically accelerates or
decelerates when the highway (or
motorway) speed limit changes.
- The maximum set speed for Highway
Set Speed Auto Change function is 90
mph (140 km/h).
- If the speed limit of a new road is not
updated in the navigation, Highway
Set Speed Auto Change function may
not operate properly.
- If the speed unit is set to a unit other
than the speed unit used in your
country, Highway Set Speed Auto
Change function may not operate
properly.
- When Highway Set Speed Auto
Change function is operating, the
vehicle may warn the driver when the
vehicle's set speed limit is above the
speed camera limit.
- Highway Set Speed Auto Change
function does not operate on highway
interchanges or junctions.
