Kia Sportage: Forward/Reverse Parking Distance Warning settings

Kia Sportage - Fifth generation (NQ5) - (2022-2025) - Owner's Manual / Driving your vehicle / Forward/Reverse Parking Distance Warning (PDW) / Forward/Reverse Parking Distance Warning settings

Forward/Reverse Parking Distance Warning (PDW) (if equipped)

Forward/Reverse Parking Distance Warning will help warn the driver if a person, an animal or an object is detected within a certain distance from the ultrasonic sensors when the vehicle is moving forward or in reverse.

Detecting sensor

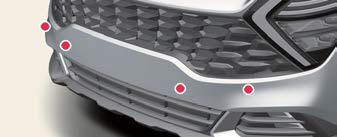

Front ultrasonic sensors
Front ultrasonic sensors

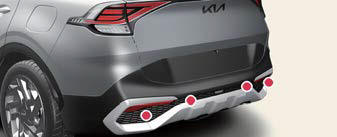

Rear ultrasonic sensors
Rear ultrasonic sensors

Refer to the picture above for the detailed location of the detecting sensors.

Forward/Reverse Parking Distance Warning settings

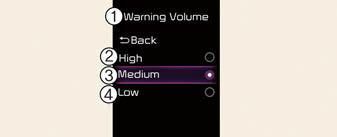

Warning Volume

Warning Volume

Warning Volume

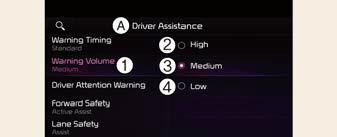

A: Driver Assistance

  1. Warning Volume
  2. High
  3. Medium
  4. Low

Select Settings ? Driver Assistance ? Warning Volume from User Settings menu or select Settings ? Vehicle ? Driver Assistance ? Warning Volumefrom the infotainment system to change the Warning Volume to High, Medium, Low for Forward/Reverse Parking Distance Warning.

NOTICE

If you change the Warning Volume, the warning volume of other Driver Assistance systems may change.

Parking Distance Warning Auto On

You can set the Parking Distance Warning to be ON at low speeds. To use Parking Distance Warning Auto On function, select Settings ? Driver Assistance ? Parking Safety ? Parking Distance Warning Auto On from User Settings menu or select Settings ? Vehicle ? Driver Assistance ?Parking Safety ? Parking Distance Warning Auto On from the infotainment system.

NOTICE

If Parking Distance Warning Auto On is selected, the Parking Safety ( ) button indicator light will turn on.
