Kia Sportage: Forward Collision-Avoidance Assist settings
Setting features

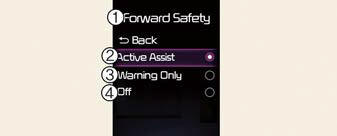

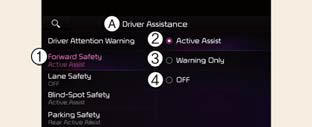

Forward Safety
![Forward Safety](images/books/1538/10/index.88.jpg)
![Forward Safety](images/books/1538/10/index.89.jpg)
- Driver Assistance
- Forward Safety
- Active Assist
- Warning Only
- Off
With the vehicle on, select Settings?
Driver Assistance ? Forward Safety
from the User Settings menu or select
Settings ? Vehicle ?Driver Assistance
? Forward Safety from the infotainment
system to set whether or not to
use each function.
- Active Assist: Forward Collision-
Avoidance Assist will warn the driver
with a warning message, and an audible
warning depending on the collision
risk levels. Braking assist will be
applied depending on the collision
risk.
- Warning Only: Forward Collision-
Avoidance Assist will warn the driver
with a warning message, and an audible
warning depending on the collision
risk levels. Braking will not be
assisted. The driver must apply the
brake pedal or steer the vehicle if necessary.
- Off: Forward Collision-Avoidance
Assist will turn off. The warning light
(
)
will appear on the cluster.
The driver can monitor Forward Collision-
Avoidance Assist ON/OFF status
from the Settings menu. If the warning
light (
) remains ON when Forward
Collision-Avoidance Assist is ON, have
the vehicle inspected by an authorized
Kia dealer.
WARNING
When the vehicle is restarted, Forward
Collision-Avoidance Assist will always
turn on. However, if Off is selected, the
driver should always be aware of the
surroundings and drive safely.
CAUTION
- If Warning Only is selected, braking is
not assisted.
- The settings for Forward Safety
include 'Basic function' and 'Junction
Turning'.
NOTICE
Forward Collision-Avoidance Assist will
turn off when ESC is turned off by pressing
and holding the ESC OFF button. The
warning light (
) will appear on
the
cluster.

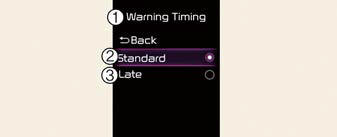

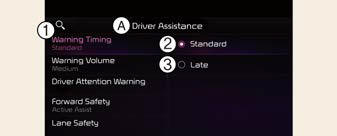

Warning Timing
![Warning Timing](images/books/1538/10/index.92.jpg)
![Warning Timing](images/books/1538/10/index.93.jpg)
- Driver Assistance
- Warning Timing
- Standard
- Late
With the vehicle on, select Settings?
Driver Assistance ? Warning Timing
from the User Settings menu or select
Settings? Vehicle ? Driver Assistance
? Warning Timing timing from
the infotainment system to change the
initial warning activation time for Forward
Collision-Avoidance Assist.
- Standard: Use in a normal driving
environment. If the function operates
too sensitively, set to the warning timing
to Late.
- Late: The warning timing will be slow.

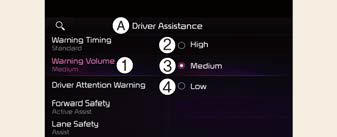

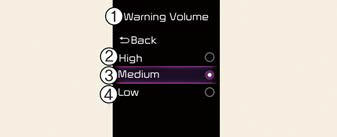

Warning Volume
![Warning Volume](images/books/1538/10/index.94.jpg)
![Warning Volume](images/books/1538/10/index.95.jpg)
- Driver Assistance
- Warning Volume
- High
- Medium
- Low
With the vehicle on, select Settings?
Driver Assistance ? Warning Volume
from the User Settings menu or select
Settings? Vehicle ? Driver Assistance
? Warning Volume from the
infotainment system to change the
Warning Volume to High, Medium, or
Low for Forward Collision-Avoidance
Assist.
CAUTION
- The setting of the Warning Timing
and Warning Volume applies to all
functions of Forward Collision-Avoidance
Assist.
- Even though Standard is selected for
Warning Timing, if the front vehicle
suddenly stops, the initial warning
activation time may seem late.
- Select Late for Warning Timing when
traffic is light and when driving speed
is slow.
NOTICE
- If the vehicle is restarted, Warning
Timing and Warning Volume will
maintain the last setting.
- If you change the Warning Volume,
the warning volume of other Driver
Assistance systems may change.
